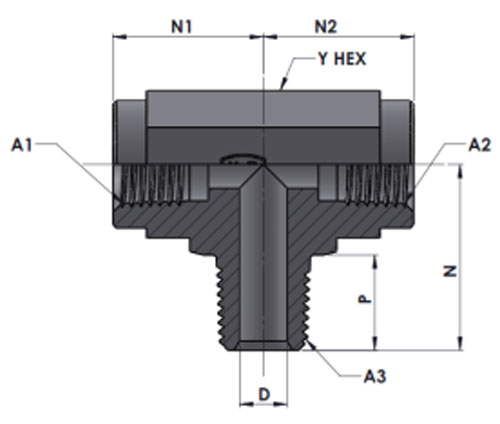

HT5604 FP-FP-MP BRANCH TEE


  • Description
  • Additional Information
A1
THREAD		 A2
THREAD		 A3
THREAD		 Y
Hex 		 N N1 N2 P D Part
Number		 Torque
N-m		 Working pressure in Bar
1/8"-27NPTF-2 1/8"-27NPTF-2 1/8"-27NPTF-2 14.27 19.80 16.70 16.70 9.70 4.80 HT5604-02-02-02 12-13 345
1/4"-18NPTF-2 1/4"-18NPTF-2 1/4"-18NPTF-2 19.00 27.70 22.40 22.40 14.20 7.10 HT5604-04-04-04 14-19 345
3/8"-18NPTF-2 3/8"-18NPTF-2 3/8"-18NPTF-2 22.22 31.00 25.90 25.90 14.20 10.30 HT5604-06-06-06 22-24 245
1/2"-14NPTF-2 1/2"-14NPTF-2 1/2"-14NPTF-2 27.00 37.30 31.20 31.20 19.00 13.50 HT5604-08-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPTF-2 3/4"-14NPTF-2 33.32 40.30 34.50 34.50 19.00 18.00 HT5604-12-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 41.27 43.10 41.10 41.10 23.90 23.80 HT5604-16-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 47.62 60.40 43.10 43.10 24.60 31.75 HT5604-20-20-20 160-176 80
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 65.07 60.70 52.80 52.80 24.40 38.00 HT5604-24-24-24 321-353 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5604-02-02-02
Steel ,Zinc nickel plated  ZiNi HT5604-02-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT5604-02-02-02-SST
Stainless Steel-SS316  SS316 HT5604-02-02-02-SS
Stainless Steel-SS304 SS304 HT5604-02-02-02-S
