| A THREAD |
B THREAD |
Y Hex |
N | N1 | Part Number | Torque N-m |
Working pressure in Bar |
| 1/8"-27NPTF-2 | 1/8"-27NPTF-2 | 14.27 | 12.70 | 12.70 | HT5505-02-02 | 18-19 | 345 |
| 1/4"-18NPTF-2 | 1/4"-18NPTF-2 | 19.05 | 17.50 | 17.50 | HT5505-04-04 | 22-24 | 275 |
| 3/8"-18NPTF-2 | 3/8"-18NPTF-2 | 22.23 | 19.10 | 19.10 | HT5505-06-06 | 45-49 | 210 |
| 1/2"-14NPTF-2 | 1/2"-14NPTF-2 | 26.97 | 23.90 | 23.90 | HT5505-08-08 | 65-72 | 170 |
| 3/4"-14NPTF-2 | 3/4"-14NPTF-2 | 33.32 | 25.40 | 25.40 | HT5505-12-12 | 129-141 | 140 |
| 1"-11-1/2NPTF-2 | 1"-11-1/2NPTF-2 | 41.28 | 30.20 | 30.20 | HT5505-16-16 | 160-176 | 80 |
| 1-1/4"-11-1/2NPTF-2 | 1-1/4"-11-1/2NPTF-2 | 47.63 | 36.60 | 36.60 | HT5505-20-20 | 321-353 | 70 |
Product
Assembly

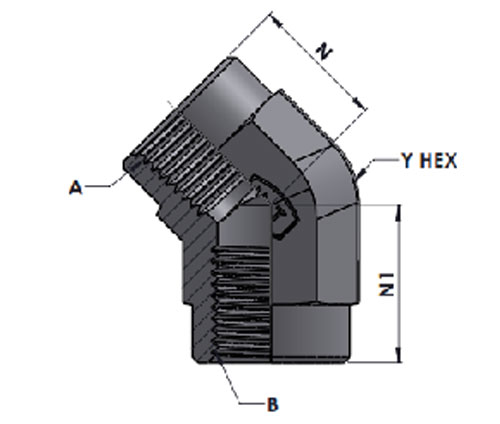

HT5505 FP-FP 45° STREET ELBOW
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT5505-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT5505-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT5505-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT5505-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT5505-02-02-S |
