| A THREAD |
A1 THREAD |
Y Hex |
N | N1 | Part Number | Torque N-m | Working pressure in Bar |
| 1/4"-18NPTF-2 | 1/4"-18NPTF-2 | 19.05 | 22.40 | 22.40 | HT5504-04-04 | 18-19 | 345 |
| 3/8"-18NPTF-2 | 3/8"-18NPTF-2 | 22.22 | 25.90 | 25.90 | HT5504-06-06 | 22-24 | 275 |
| 1/2"-14NPTF-2 | 1/2"-14NPTF-2 | 26.97 | 31.20 | 31.20 | HT5504-08-08 | 45-49 | 210 |
| 3/4"-14NPTF-2 | 3/4"-14NPTF-2 | 33.32 | 34.50 | 34.50 | HT5504-12-12 | 65-72 | 170 |
| 1"-11-1/2NPTF-2 | 1"-11-1/2NPTF-2 | 41.27 | 41.10 | 41.10 | HT5504-16-16 | 129-141 | 140 |
| 1-1/4"-11-1/2NPTF-2 | 1-1/4"-11-1/2NPTF-2 | 47.62 | 43.10 | 43.10 | HT5504-20-20 | 160-176 | 80 |
| 1-1/2"-11-1/2NPTF-2 | 1-1/2"-11-1/2NPTF-2 | 65.07 | 52.80 | 52.80 | HT5504-24-24 | 321-353 | 70 |
Product
Assembly

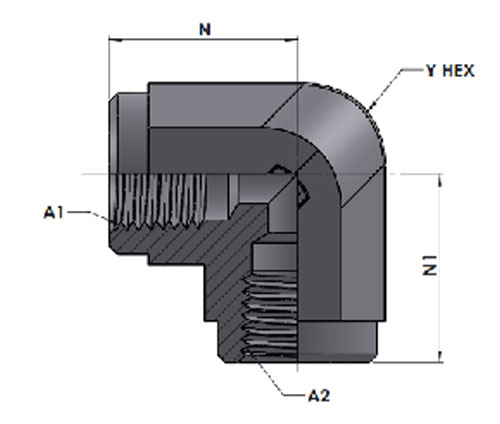

HT5504 FP-FP 90° STREET ELBOW
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT5504-04-04 | |
| Steel ,Zinc nickel plated | ZiNi | HT5504-04-04-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT5504-04-04-SST |
| Stainless Steel-SS316 | SS316 | HT5504-04-04-SS |
| Stainless Steel-SS304 | SS304 | HT5504-04-04-S |
