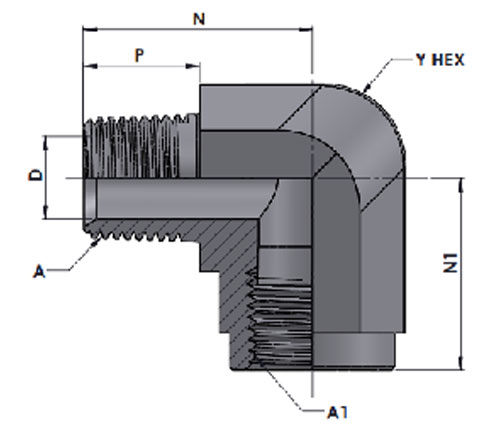

HT5502 MP-FP 90° STREET ELBOW


  • Description
  • Additional Information
A
THREAD		 A1
THREAD		 Y
Hex 		 N P N1 D  Part Number Torque N-m Working pressure in Bar
1/4"-18NPTF-2 1/4"-18NPTF-2 19.00 27.70 14.20 22.40 7.10 HT5502-04-04 18-19 345
3/8"-18NPTF-2 3/8"-18NPTF-2 22.22 32.00 14.20 25.90 10.30 HT5502-06-06 22-24 275
1/2"-14NPTF-2 1/2"-14NPTF-2 27.00 37.30 19.00 31.20 13.50 HT5502-08-08 45-49 210
3/4"-14NPTF-2 3/4"-14NPTF-2 33.32 32.70 19.00 34.50 18.30 HT5502-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 41.27 43.10 23.90 41.10 23.80 HT5502-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 47.62 60.45 24.60 43.10 31.75 HT5502-20-20 160-176 80
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 65.07 67.00 24.40 52.80 38.00 HT5502-24-24 321-353 70
2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 71.42 76.20 26.20 60.70 49.00 HT5502-32-32 420-462 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5502-04-04
Steel ,Zinc nickel plated  ZiNi HT5502-04-04-ZiNi
Stainless Steel-SS316 Ti SST HT5502-04-04-SST
Stainless Steel-SS316  SS316 HT5502-04-04-SS
Stainless Steel-SS304 SS304 HT5502-04-04-S
