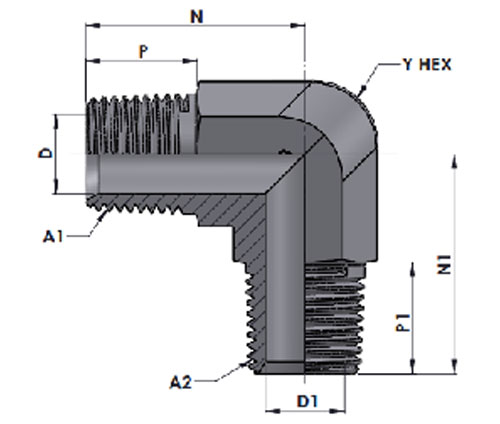

HT5500 MP-MP 90°


  • Description
  • Additional Information
A1
THREAD		 A2
THREAD		 Y
Hex 		 N P N1 P1 D  D1 Part Number Torque N-m Working pressure
in Bar
1/8"-27NPTF-2 1/8"-27NPTF-2 11.11 19.80 9.70 19.80 9.70 4.80 4.80 HT5500-02-02 12-13 345
1/4"-18NPTF-2 1/4"-18NPTF-2 14.28 27.70 14.20 27.70 14.20 7.10 7.10 HT5500-04-04 18-19 345
3/8"-18NPTF-2 3/8"-18NPTF-2 19.05 31.00 14.20 31.00 14.20 10.30 10.30 HT5500-06-06 22-24 275
1/2"-14NPTF-2 1/2"-14NPTF-2 22.22 37.30 19.00 37.30 19.00 13.50 13.50 HT5500-08-08 45-49 210
3/4"-14NPTF-2 1/2"-14NPTF-2 27.00 40.40 19.00 40.40 19.00 8.00 13.50 HT5500-12-08 22-24 210
3/4"-14NPTF-2 3/4"-14NPTF-2 27.00 40.40 19.00 40.40 19.00 18.30 18.30 HT5500-12-12 65-72 170
1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 33.32 50.00 23.90 50.00 23.90 23.80 23.80 HT5500-16-16 129-141 140
1-1/4"-11-1/2NPTF-2 1-1/4"-11-1/2NPTF-2 41.27 60.45 24.60 60.45 24.60 31.75 31.75 HT5500-20-20 160-176 80
1-1/2"-11-1/2NPTF-2 1-1/2"-11-1/2NPTF-2 47.62 67.00 24.40 67.00 24.40 38.00 38.00 HT5500-24-24 321-353 70
2"-11-1/2NPTF-2 2"-11-1/2NPTF-2 63.50 76.20 26.20 76.20 26.20 49.00 49.00 HT5500-32-32 420-462 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT5500-02-02
Steel ,Zinc nickel plated  ZiNi HT5500-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT5500-02-02-SST
Stainless Steel-SS316  SS316 HT5500-02-02-SS
Stainless Steel-SS304 SS304 HT5500-02-02-S
