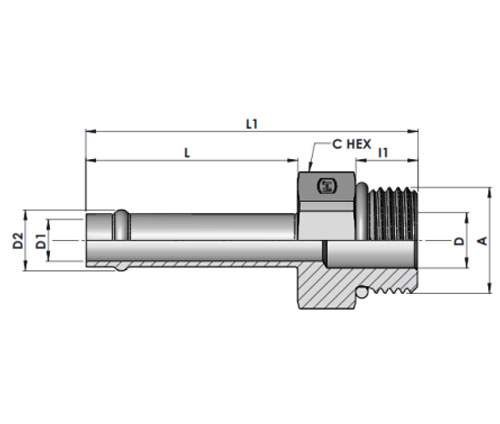

| A THREAD |
C Hex |
L1 | L | I1 | D DRILL |
D1 DRILL |
D2 | Part Number | Working pressure in Bar |
| 3/4"-16UNF-2A | 22.22 | 59.70 | 38.10 | 11.13 | 9.90 | 7.50 | 10.95 | HT4604-06-08 | 310 |
| 1-5/16"-12UN-2A | 38.10 | 66.00 | 38.10 | 15.09 | 21.40 | 21.40 | 26.90 | HT4604-16-16 | 210 |
Product
Assembly
HT4604 HB-MAORB STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT4604-06-08 | |
| Steel ,Zinc nickel plated | ZiNi | HT4604-06-08-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT4604-06-08-SST |
| Stainless Steel-SS316 | SS316 | HT4604-06-08-SS |
| Stainless Steel-SS304 | SS304 | HT4604-06-08-S |
