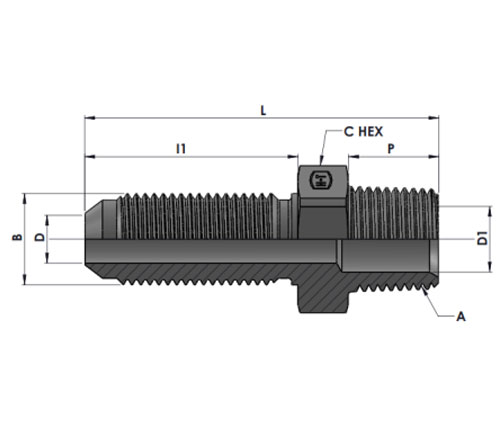

| Tube O.D. | A THREAD |
B THREAD |
C Hex |
L | I1 | P | D DRILL |
D1 DRILL |
Part Number | Working pressure in Bar |
| 1/4" | 1/4"-18NPTF-2 | 7/16"-20UNF-2A | 17.47 | 53.60 | 30.50 | 14.20 | 4.40 | 7.00 | HT2706-04-04 | 275 |
| 3/8" | 3/8"-18NPTF-2 | 9/16"-18UNF-2A | 20.63 | 55.60 | 32.50 | 14.20 | 7.50 | 10.30 | HT2706-06-06 | 210 |
| 1/2" | 1/2"-14NPTF-2 | 3/4"-16UNF-2A | 25.40 | 66.00 | 36.60 | 19.00 | 9.90 | 13.50 | HT2706-08-08 | 210 |
| 3/4" | 3/4"-14NPTF-2 | 1-1/16"-12UN-2A | 34.92 | 75.70 | 21.90 | 19.00 | 15.50 | 18.30 | HT2706-12-12 | 170 |
| 1" | 1"-11-1/2NPTF-2 | 1-5/16"-12UN-2A | 41.27 | 80.51 | 23.10 | 23.90 | 21.50 | 23.80 | HT2706-16-16 | 170 |
| 1-1/4" | 1-1/4"-11-1/2NPTF-2 | 1-5/8"-12UN-2A | 47.62 | 84.58 | 24.30 | 24.60 | 27.50 | 31.70 | HT2706-20-20 | 80 |
| 1-1/2" | 1-1/2"-11-1/2NPTF-2 | 1-7/8"-12UN-2A | 53.97 | 87.37 | 27.50 | 25.40 | 33.50 | 38.00 | HT2706-24-24 | 70 |
| 2" | 2"-11-1/2NPTF-2 | 2-1/2"-12UN-2A | 69.85 | 99.00 | 33.90 | 26.20 | 45.20 | 49.00 | HT2706-32-32 | 70 |
Product
Assembly
HT2706 MP-MJ BULKHEAD STR.
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2706-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2706-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2706-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT2706-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT2706-02-02-S |
