| Tube O.D. | A THREAD |
B THREAD |
C THREAD |
Y Hex |
M3 | M4 | M5 | I | I2 | I1 | D DRILL |
D1 DRILL |
D2 DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/8" | 5/16"-24UNF-2A | 5/16"-24UNF-2A | 5/16"-24UNF-2A | 11.10 | 22.40 | 38.10 | 22.40 | 11.40 | 23.40 | 11.40 | 1.60 | 1.60 | 1.60 | HT2704-02-02-02 | 8-9 | 345 |
| 3/16" | 3/8"-24UNF-2A | 3/8"-24UNF-2A | 3/8"-24UNF-2A | 11.10 | 23.90 | 38.10 | 23.90 | 12.20 | 23.40 | 12.20 | 3.20 | 3.20 | 3.20 | HT2704-03-03-03 | 11-12 | 345 |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2A | 7/16"-20UNF-2A | 11.10 | 24.60 | 40.40 | 24.60 | 14.00 | 25.90 | 14.00 | 4.40 | 4.40 | 4.40 | HT2704-04-04-04 | 15-16 | 345 |
| 5/16" | 1/2"-20UNF-2A | 1/2"-20UNF-2A | 1/2"-20UNF-2A | 14.30 | 26.90 | 43.70 | 26.90 | 14.00 | 25.90 | 14.00 | 6.00 | 6.00 | 6.00 | HT2704-05-05-05 | 19-21 | 345 |
| 3/8" | 9/16"-18UNF-2A | 9/16"-18UNF-2A | 9/16"-18UNF-2A | 14.30 | 27.70 | 46.00 | 27.70 | 14.10 | 27.70 | 14.10 | 7.50 | 7.50 | 7.50 | HT2704-06-06-06 | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 3/4"-16UNF-2A | 3/4"-16UNF-2A | 19.00 | 34.50 | 53.60 | 34.50 | 16.70 | 31.80 | 16.70 | 9.90 | 9.90 | 9.90 | HT2704-08-08-08 | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 7/8"-14UNF-2A | 7/8"-14UNF-2A | 22.20 | 39.60 | 60.70 | 39.60 | 19.30 | 35.30 | 19.30 | 12.30 | 12.30 | 12.30 | HT2704-10-10-10 | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 1-1/16"-12UN-2A | 1-1/16"-12UN-2A | 27.00 | 45.20 | 67.80 | 45.20 | 21.90 | 39.60 | 21.90 | 15.50 | 15.50 | 15.50 | HT2704-12-12-12 | 107-119 | 240 |
| 7/8" | 1-3/16"-12UN-2A | 1-3/16"-12UN-2A | 1-3/16"-12UN-2A | 33.30 | 48.80 | 71.10 | 48.80 | 22.60 | 39.60 | 22.60 | 18.30 | 18.30 | 18.30 | HT2704-14-14-14 | 127-140 | 210 |
| 1" | 1-5/16"-12UN-2A | 1-5/16"-12UN-2A | 1-5/16"-12UN-2A | 33.30 | 49.30 | 71.10 | 49.30 | 23.10 | 39.60 | 23.10 | 21.50 | 21.50 | 21.50 | HT2704-16-16-16 | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-5/8"-12UN-2A | 1-5/8"-12UN-2A | 41.30 | 55.10 | 79.20 | 55.10 | 24.30 | 40.90 | 24.30 | 27.50 | 27.50 | 27.50 | HT2704-20-20-20 | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 1-7/8"-12UN-2A | 1-7/8"-12UN-2A | 47.60 | 59.40 | 86.90 | 59.40 | 27.50 | 41.10 | 27.50 | 33.50 | 33.50 | 33.50 | HT2704-24-24-24 | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 2-1/2"-12UN-2A | 2-1/2"-12UN-2A | 63.50 | 73.40 | 104.40 | 73.40 | 33.90 | 48.50 | 33.90 | 45.20 | 45.20 | 45.20 | HT2704-32-32-32 | 332-350 | 105 |
Product
Assembly

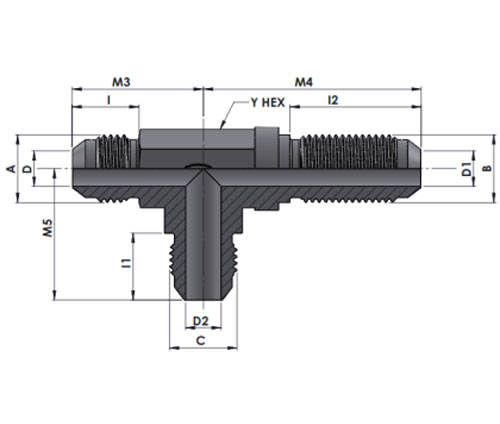

HT2704 MJ-MJ-MJ BULKHEAD RUN TEE
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2704-02-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2704-02-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2704-02-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT2704-02-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT2704-02-02-02-S |
