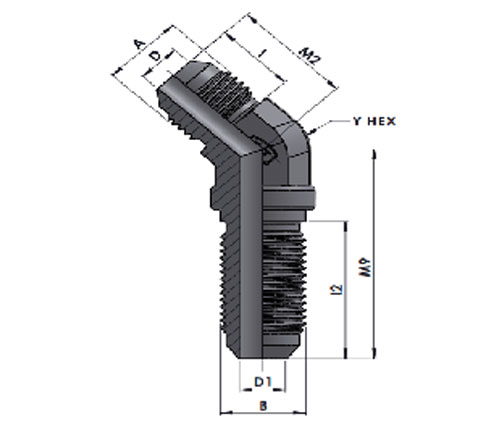

| Tube O.D. | A THREAD |
B THREAD |
Y Hex |
M2 | M9 | I | I2 | D DRILL |
D1 DRILL |
Part Number | Torque N-m |
Working pressure sin Bar |
| 1/8" | 5/16"-24UNF-2A | 5/16"-24UNF-2A | 11.10 | 17.50 | 36.10 | 11.40 | 23.40 | 1.60 | 1.60 | HT2702-02-02 | 8-9 | 345 |
| 3/16" | 3/8"-24UNF-2A | 3/8"-24UNF-2A | 11.10 | 17.50 | 36.10 | 12.20 | 23.40 | 3.20 | 3.20 | HT2702-03-03 | 11-12 | 345 |
| 1/4" | 7/16"-20UNF-2A | 7/16"-20UNF-2A | 11.10 | 18.30 | 38.90 | 14.00 | 25.90 | 4.40 | 4.40 | HT2702-04-04 | 15-16 | 345 |
| 5/16" | 1/2"-20UNF-2A | 1/2"-20UNF-2A | 14.30 | 19.60 | 42.20 | 14.00 | 25.90 | 6.00 | 6.00 | HT2702-05-05 | 19-21 | 345 |
| 3/8" | 9/16"-18UNF-2A | 9/16"-18UNF-2A | 14.30 | 21.10 | 42.40 | 14.10 | 27.70 | 7.50 | 7.50 | HT2702-06-06 | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 3/4"-16UNF-2A | 19.00 | 24.90 | 49.30 | 16.70 | 31.80 | 9.90 | 9.90 | HT2702-08-08 | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 7/8"-14UNF-2A | 22.20 | 28.20 | 55.10 | 19.30 | 35.30 | 12.30 | 12.30 | HT2702-10-10 | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 1-1/16"-12UN-2A | 27.00 | 32.50 | 62.00 | 21.90 | 39.60 | 15.50 | 15.50 | HT2702-12-12 | 107-119 | 240 |
| 7/8" | 1-3/16"-12UN-2A | 1-3/16"-12UN-2A | 33.30 | 36.80 | 63.50 | 22.60 | 39.60 | 18.30 | 18.30 | HT2702-14-14 | 127-140 | 210 |
| 1" | 1-5/16"-12UN-2A | 1-5/16"-12UN-2A | 33.30 | 37.30 | 65.00 | 23.10 | 39.60 | 21.50 | 21.50 | HT2702-16-16 | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 1-5/8"-12UN-2A | 41.30 | 40.40 | 67.30 | 24.30 | 40.90 | 27.50 | 27.50 | HT2702-20-20 | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 1-7/8"-12UN-2A | 47.60 | 45.20 | 67.80 | 27.50 | 41.10 | 33.50 | 33.50 | HT2702-24-24 | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 2-1/2"-12UN-2A | 63.50 | 56.40 | 73.90 | 33.90 | 48.50 | 45.20 | 45.20 | HT2702-32-32 | 332-350 | 105 |
Product
Assembly
HT2702 MJ-MJ BULKHEAD 45°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2702-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2702-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2702-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT2702-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT2702-02-02-S |
