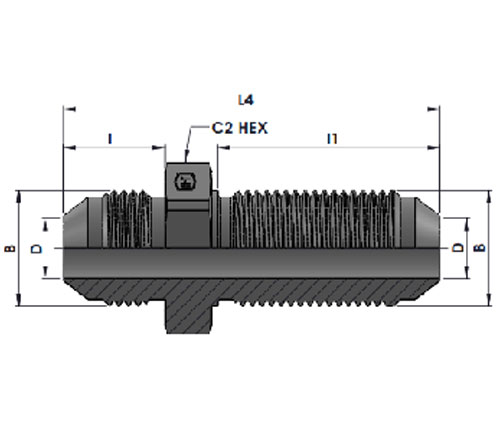

| Tube O.D. | B THREAD |
C2 Hex |
L4 | I1 | I | D DRILL |
Part Number |
Torque N-m | Working pressure in Bar |
| 1/8" | 5/16"-24UNF-2A | 14.29 | 47.50 | 28.20 | 11.40 | 1.60 | HT2700-02-02 | 8-9 | 345 |
| 3/16" | 3/8"-24UNF-2A | 15.88 | 48.30 | 28.20 | 12.20 | 3.20 | HT2700-03-03 | 11-12 | 345 |
| 1/4" | 7/16"-20UNF-2A | 17.46 | 52.60 | 30.50 | 14.00 | 4.40 | HT2700-04-04 | 15-16 | 345 |
| 5/16" | 1/2"-20UNF-2A | 19.05 | 52.60 | 30.50 | 14.00 | 6.00 | HT2700-05-05 | 19-21 | 345 |
| 3/8" | 9/16"-18UNF-2A | 20.64 | 55.40 | 32.50 | 14.10 | 7.50 | HT2700-06-06 | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 25.40 | 62.00 | 36.60 | 16.70 | 9.90 | HT2700-08-08 | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 28.58 | 69.60 | 40.10 | 19.30 | 12.30 | HT2700-10-10 | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 34.93 | 78.50 | 44.40 | 21.90 | 15.50 | HT2700-12-12 | 107-119 | 240 |
| 7/8" | 1-3/16"-12UN-2A | 38.10 | 79.20 | 44.40 | 22.60 | 18.30 | HT2700-14-14 | 127-140 | 210 |
| 1" | 1-5/16"-12UN-2A | 41.28 | 79.80 | 44.40 | 23.10 | 21.50 | HT2700-16-16 | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 47.63 | 84.10 | 45.70 | 24.30 | 27.50 | HT2700-20-20 | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 53.98 | 89.40 | 46.00 | 27.50 | 33.50 | HT2700-24-24 | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 69.85 | 106.70 | 53.10 | 33.90 | 45.20 | HT2700-32-32 | 332-350 | 105 |
Product
Assembly
HT2700 MJ-MJ BULKHEAD
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2700-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2700-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2700-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT2700-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT2700-02-02-S |
