| Tube O.D. | B THREAD |
C2 Hex |
L4 | I1 | I | D DRILL |
C4 Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/8" | 5/16"-24UNF-2A | 14.29 | 47.50 | 28.20 | 11.40 | 1.60 | 14.29 | HT2700-02-02-LN | 8-9 | 345 |
| 3/16" | 3/8"-24UNF-2A | 15.88 | 48.30 | 28.20 | 12.20 | 3.20 | 15.88 | HT2603-03-03-LN | 11-12 | 345 |
| 1/4" | 7/16"-20UNF-2A | 17.46 | 52.60 | 30.50 | 14.00 | 4.40 | 17.46 | HT2603-04-04-LN | 15-16 | 345 |
| 5/16" | 1/2"-20UNF-2A | 19.05 | 52.60 | 30.50 | 14.00 | 6.00 | 19.05 | HT2603-05-05-LN | 19-21 | 345 |
| 3/8" | 9/16"-18UNF-2A | 20.64 | 55.40 | 32.50 | 14.10 | 7.50 | 20.64 | HT2603-06-06-LN | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 25.40 | 62.00 | 36.60 | 16.70 | 9.90 | 25.40 | HT2603-08-08-LN | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 28.58 | 69.60 | 40.10 | 19.30 | 12.30 | 28.58 | HT2603-10-10-LN | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 34.93 | 78.50 | 44.40 | 21.90 | 15.50 | 34.93 | HT2603-12-12-LN | 107-119 | 240 |
| 7/8" | 1-3/16"-12UN-2A | 38.10 | 79.20 | 44.40 | 22.60 | 18.30 | 38.10 | HT2603-14-14-LN | 127-140 | 210 |
| 1" | 1-5/16"-12UN-2A | 41.28 | 79.80 | 44.40 | 23.10 | 21.50 | 41.28 | HT2603-16-16-LN | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 47.63 | 84.10 | 45.70 | 24.30 | 27.50 | 47.63 | HT2603-20-20-LN | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 53.98 | 89.40 | 46.00 | 27.50 | 33.50 | 53.98 | HT2603-24-24-LN | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 69.85 | 106.70 | 53.10 | 33.90 | 45.20 | 69.85 | HT2603-32-32-LN | 332-350 | 105 |
Product
Assembly

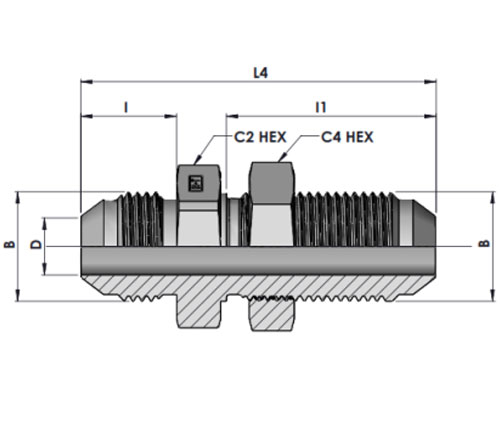

HT2700-LN MJ-MJ BULK. WITH LN
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2700-02-02-LN | |
| Steel ,Zinc nickel plated | ZiNi | HT2700-02-02-LN-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2700-02-02-LN-SST |
| Stainless Steel-SS316 | SS316 | HT2700-02-02-LN-SS |
| Stainless Steel-SS304 | SS304 | HT2700-02-02-LN-S |
