HT2601 MJ-MJ-MP TEE


  • Description
  • Additional Information

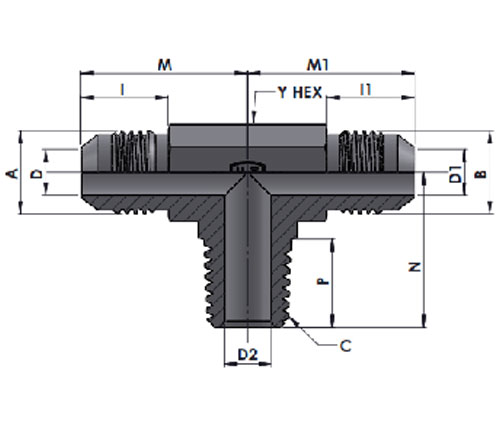

Tube O.D.  A
THREAD		 B
THREAD		 C
THREAD		 Y Hex  M M1 N I I1  P D
DRILL		 D1
DRILL		 D2
DRILL		 Part Number Torque N-m Working pressure
in Bar
1/8" 5/16"-24UNF-2A 5/16"-24UNF-2A 1/8"-27NPTF-2 11.10 19.60 19.60 18.30 11.40 11.40 9.70 1.60 1.60 4.80 HT2601-02-02-02 8-9 345
1/4" 7/16"-20UNF-2A 7/16"-20UNF-2A 1/4"-18NPTF-2 11.10 22.60 22.60 19.80 14.00 14.00 9.70 4.40 4.40 4.80 HT2601-04-04-04 15-16 310
3/8" 9/16"-18UNF-2A 9/16"-18UNF-2A 3/8"-18NPTF-2 14.30 26.90 26.90 27.70 14.10 14.10 14.20 7.50 7.50 7.00 HT2601-06-06-06 24-28 275
1/2" 3/4"-16UNF-2A 3/4"-16UNF-2A 1/2"-14NPTF-2 19.00 31.80 31.80 31.00 16.70 16.70 14.20 9.90 9.90 10.30 HT2601-08-08-08 49-53 210
3/4" 1-1/16"-12UN-2A 1-1/16"-12UN-2A 3/4"-14NPTF-2 27.00 42.20 42.20 40.40 21.90 21.90 19.00 15.50 15.50 18.30 HT2601-12-12-12 107-119 170
1" 1-5/16"-12UN-2A 1"-11-1/2NPTF-2 1"-11-1/2NPTF-2 33.30 46.00 46.00 50.00 23.10 23.10 23.90 21.40 21.40 23.80 HT2601-16-16-16 147-154 140
1-1/4" 1-5/8"-12UN-2A 1-5/8"-12UN-2A 1-1/4"-11-1/2NPTF-2 41.30 52.30 52.30 60.50 24.30 24.30 24.60 27.40 27.40 31.70 HT2601-20-20-20 172-181 80
1-1/2" 1-7/8"-12UN-2A 1-7/8"-12UN-2A 1-1/2"-11-1/2NPTF-2 47.60 59.20 59.20 67.10 27.50 27.50 25.40 33.30 33.30 38.00 HT2601-24-24-24 215-226 70
2" 2-1/2"-12UN-2A 2-1/2"-12UN-2A 2"-11-1/2NPTF-2 63.50 77.70 77.70 76.20 33.90 33.90 26.20 45.20 45.20 49.00 HT2601-32-32-32 332-350 70
Material Suffix surface and material Example
Steel ,Zinc plated chrome (VI)-free HT2601-02-02-02
Steel ,Zinc nickel plated  ZiNi HT2601-02-02-02-ZiNi
Stainless Steel-SS316 Ti SST HT2601-02-02-02-SST
Stainless Steel-SS316  SS316 HT2601-02-02-02-SS
Stainless Steel-SS304 SS304 HT2601-02-02-02-S
