| Tube O.D. | A THREAD |
B THREAD |
Y Hex |
M | L | I | D DRILL |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/8" | 1/8"-27NPTF-2 | 5/16"-24UNF-2A | 14.27 | 25.40 | 16.80 | 11.40 | 1.60 | HT2502-02-02 | 8-9 | 345 |
| 1/4" | 1/4"-18NPTF-2 | 7/16"-20UNF-2A | 19.05 | 31.00 | 22.40 | 14.00 | 4.40 | HT2502-04-04 | 15-16 | 310 |
| 3/8" | 3/8"-18NPTF-2 | 9/16"-18UNF-2A | 22.23 | 33.30 | 25.90 | 14.10 | 7.50 | HT2502-06-06 | 24-28 | 275 |
| 1/2" | 1/2"-14NPTF-2 | 3/4"-16UNF-2A | 26.97 | 38.60 | 31.20 | 16.70 | 9.90 | HT2502-08-08 | 49-53 | 210 |
| 3/4" | 3/4"-14NPTF-2 | 1-1/16"-12UN-2A | 33.32 | 48.00 | 34.50 | 21.90 | 15.50 | HT2502-12-12 | 107-119 | 170 |
| 1" | 1"-11-1/2NPTF-2 | 1-5/16"-12UN-2A | 41.28 | 55.10 | 41.10 | 23.10 | 21.40 | HT2502-16-16 | 147-154 | 140 |
| 1-1/4" | 1-1/4"-11-1/2NPTF-2 | 1-5/8"-12UN-2A | 47.63 | 59.20 | 43.20 | 24.30 | 27.40 | HT2502-20-20 | 172-181 | 80 |
| 1-1/2" | 1-1/2"-11-1/2NPTF-2 | 1-7/8"-12UN-2A | 65.07 | 73.40 | 52.80 | 27.50 | 33.30 | HT2502-24-24 | 215-226 | 70 |
| 2" | 2"-11-1/2NPTF-2 | 2"-12UN-2A | 71.42 | 83.80 | 60.70 | 33.90 | 45.00 | HT2502-32-32 | 332-350 | 70 |
Product
Assembly

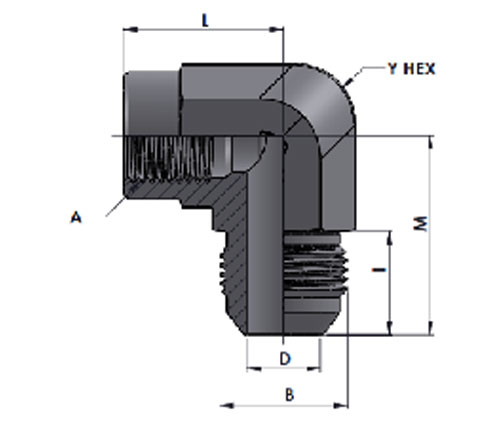

HT2502 MJ-FP 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2502-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2502-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2502-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT2502-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT2502-02-02-S |
