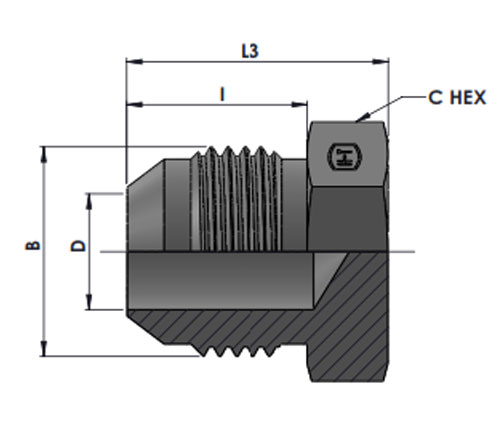

| Tube O.D. | B THREAD |
C Hex |
L3 Length |
I | D DRILL |
Part Number |
Torque N-m | Working pressure in Bar |
| 1/8" | 5/16"-24UNF-2A | 11.11 | 17.80 | 11.40 | 1.60 | HT2408-02 | 8-9 | 345 |
| 3/16" | 3/8"-24UNF-2A | 11.11 | 18.50 | 12.20 | 3.20 | HT2408-03 | 11-12 | 345 |
| 1/4" | 7/16"-20UNF-2A | 12.70 | 20.30 | 14.00 | 4.40 | HT2408-04 | 15-16 | 345 |
| 5/16" | 1/2"-20UNF-2A | 14.28 | 20.30 | 14.00 | 6.00 | HT2408-05 | 19-21 | 345 |
| 3/8" | 9/16"-18UNF-2A | 15.87 | 21.30 | 14.10 | 7.50 | HT2408-06 | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 20.63 | 23.90 | 16.70 | 9.90 | HT2408-08 | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 23.81 | 27.90 | 19.30 | 12.30 | HT2408-10 | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 28.57 | 32.50 | 21.90 | 15.50 | HT2408-12 | 107-119 | 240 |
| 7/8" | 1-3/16"-12UN-2A | 31.75 | 33.30 | 22.60 | 18.30 | HT2408-14 | 127-140 | 210 |
| 1" | 1-5/16"-12UN-2A | 34.90 | 33.80 | 23.10 | 21.50 | HT2408-16 | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 42.86 | 36.80 | 24.30 | 27.50 | HT2408-20 | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 50.80 | 41.90 | 27.50 | 33.50 | HT2408-24 | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 66.68 | 52.10 | 33.90 | 45.20 | HT2408-32 | 332-350 | 105 |
Product
Assembly
HT2408 MJ PLUG
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT6835-04-04-04-NWO | |
| Steel ,Zinc nickel plated | ZiNi | HT6835-04-04-04-NWO-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT6835-04-04-04-NWO-SST |
| Stainless Steel-SS316 | SS316 | HT6835-04-04-04-NWO-SS |
| Stainless Steel-SS304 | SS304 | HT6835-04-04-04-NWO-S |
