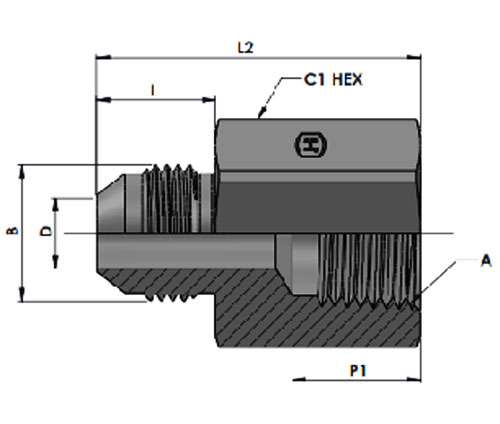

| Tube O.D. | A THREAD |
B THREAD |
C1 Hex |
L2 Length |
I | D DRILL | P1 | Part Number | Working pressure in Bar |
| 1/4" | 1/8"-27NPTF-2 | 7/16"-20UNF-2A | 14.28 | 30.25 | 14.00 | 4.40 | 11.70 | HT2405-04-02 | 345 |
| 1/4" | 1/4"-18NPTF-2 | 7/16"-20UNF-2A | 19.05 | 35.31 | 14.00 | 4.40 | 16.50 | HT2405-04-04 | 275 |
| 1/4" | 3/8"-18NPTF-2 | 7/16"-20UNF-2A | 22.22 | 36.83 | 14.00 | 4.40 | 17.30 | HT2405-04-06 | 210 |
| 1/4" | 1/2"-14NPTF-2 | 7/16"-20UNF-2A | 28.58 | 42.67 | 14.00 | 4.40 | 22.90 | HT2405-04-08 | 210 |
| 3/8" | 1/4"-18NPTF-2 | 9/16"-18UNF-2A | 19.05 | 35.56 | 14.10 | 7.50 | 16.50 | HT2405-06-04 | 275 |
| 3/8" | 3/8"-18NPTF-2 | 9/16"-18UNF-2A | 22.22 | 37.08 | 14.10 | 7.50 | 17.00 | HT2405-06-06 | 210 |
| 3/8" | 1/2"-14NPTF-2 | 9/16"-18UNF-2A | 28.58 | 42.93 | 14.10 | 7.50 | 22.90 | HT2405-06-08 | 210 |
| 3/8" | 3/4"-14NPTF-2 | 9/16"-18UNF-2A | 34.93 | 44.45 | 14.10 | 7.50 | 23.10 | HT2405-06-12 | 170 |
| 1/2" | 1/4"-18NPTF-2 | 3/4"-16UNF-2A | 20.65 | 39.37 | 16.70 | 9.90 | 19.00 | HT2405-08-04 | 310 |
| 1/2" | 3/8"-18NPTF-2 | 3/4"-16UNF-2A | 22.22 | 39.62 | 16.70 | 9.90 | 17.00 | HT2405-08-06 | 210 |
| 1/2" | 1/2"-14NPTF-2 | 3/4"-16UNF-2A | 28.58 | 45.47 | 16.70 | 9.90 | 18.00 | HT2405-08-08 | 210 |
| 5/8" | 1/4"-18NPTF-2 | 7/8"-14UNF-2A | 23.81 | 42.16 | 19.30 | 12.30 | 17.00 | HT2405-10-04 | 240 |
| 5/8" | 3/8"-18NPTF-2 | 7/8"-14UNF-2A | 23.81 | 42.40 | 19.30 | 12.30 | 17.30 | HT2405-10-06 | 210 |
| 5/8" | 1/2"-14NPTF-2 | 7/8"-14UNF-2A | 28.58 | 48.00 | 19.30 | 12.30 | 22.90 | HT2405-10-08 | 210 |
| 5/8" | 3/4"-14NPTF-2 | 7/8"-14UNF-2A | 34.93 | 49.50 | 19.30 | 12.30 | 23.10 | HT2405-10-12 | 170 |
| 3/4" | 3/4"-14NPTF-2 | 1-1/16"-12UN-2A | 34.93 | 52.32 | 21.90 | 15.50 | 23.10 | HT2405-12-12 | 170 |
Product
Assembly
HT2405 MJ-FP STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2405-04-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2405-04-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2405-04-02-SST |
| Stainless Steel-SS316 | SS316 | HT2405-04-02-SS |
| Stainless Steel-SS304 | SS304 | HT2405-04-02-S |
