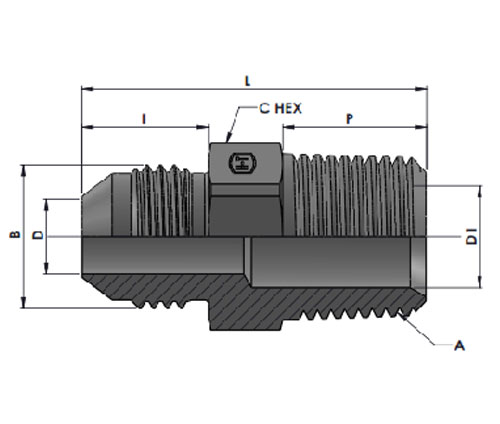

| Tube O.D |
A THREAD |
B THREAD |
C Hex |
L Length |
I | D DRILL |
P | D1 DRILL | Part Number | Working pressure in Bar |
| 1/4" | 1/8"-27NPTF-2 | 7/16"-20UNF-2A | 12.70 | 30.99 | 14.00 | 4.40 | 9.70 | 4.80 | HT2404-04-02 | 345 |
| 1/4" | 1/4"-18NPTF-2 | 7/16"-20UNF-2A | 14.29 | 36.06 | 14.00 | 4.40 | 14.20 | 7.00 | HT2404-04-04 | 345 |
| 1/4" | 3/8"-18NPTF-2 | 7/16"-20UNF-2A | 19.00 | 36.00 | 14.00 | 4.40 | 14.20 | 10.30 | HT2404-04-06 | 210 |
| 3/8" | 1/4"-18NPTF-2 | 9/16"-18UNF-2A | 15.87 | 36.32 | 14.10 | 7.50 | 14.20 | 7.13 | HT2404-06-04 | 345 |
| 3/8" | 3/8"-18NPTF-2 | 9/16"-18UNF-2A | 19.05 | 36.30 | 14.10 | 7.50 | 14.20 | 10.30 | HT2404-06-06 | 210 |
| 3/8" | 1/2"-14NPTF-2 | 9/16"-18UNF-2A | 22.20 | 42.93 | 14.10 | 7.50 | 19.00 | 13.50 | HT2404-06-08 | 210 |
| 1/2" | 1/4"-18NPTF-2 | 3/4"-16UNF-2A | 20.63 | 38.90 | 16.70 | 9.90 | 14.20 | 7.10 | HT2404-08-04 | 310 |
| 1/2" | 3/8"-18NPTF-2 | 3/4"-16UNF-2A | 20.63 | 38.86 | 16.70 | 9.90 | 14.20 | 10.30 | HT2404-08-06 | 210 |
| 1/2" | 1/2"-14NPTF-2 | 3/4"-16UNF-2A | 22.22 | 45.50 | 16.70 | 9.90 | 19.00 | 13.50 | HT2404-08-08 | 210 |
| 1/2" | 3/4"-14NPTF-2 | 3/4"-16UNF-2A | 28.58 | 46.99 | 16.70 | 9.90 | 19.00 | 18.30 | HT2404-08-12 | 170 |
| 5/8" | 3/8"-18NPTF-2 | 7/8"-14UNF-2A | 23.81 | 43.20 | 19.30 | 12.30 | 14.20 | 10.30 | HT2404-10-06 | 240 |
| 5/8" | 1/2"-14NPTF-2 | 7/8"-14UNF-2A | 23.81 | 48.00 | 19.30 | 12.30 | 19.00 | 13.50 | HT2404-10-08 | 240 |
| 5/8" | 3/4"-14NPTF-2 | 7/8"-14UNF-2A | 28.58 | 49.53 | 19.30 | 12.30 | 19.00 | 18.26 | HT2404-10-12 | 170 |
| 5/8" | 1"-11-1/2NPTF-2 | 7/8"-14UNF-2A | 34.90 | 54.60 | 19.30 | 12.30 | 23.90 | 23.80 | HT2404-10-16 | 140 |
| 3/4" | 1/2"-14NPTF-2 | 1-1/16"-12UN-2A | 28.58 | 52.30 | 21.90 | 15.50 | 19.00 | 13.50 | HT2404-12-08 | 240 |
| 3/4" | 3/4"-14NPTF-2 | 1-1/16"-12UN-2A | 28.58 | 52.30 | 21.90 | 15.50 | 19.00 | 18.26 | HT2404-12-12 | 170 |
| 3/4" | 1"-11-1/2NPTF-2 | 1-1/16"-12UN-2A | 34.92 | 57.20 | 21.90 | 15.50 | 23.90 | 23.80 | HT2404-12-16 | 170 |
| 1" | 3/4"-14NPTF-2 | 1-5/16"-12UN-2A | 34.93 | 53.60 | 23.10 | 21.40 | 19.00 | 18.26 | HT2404-16-12 | 170 |
| 1" | 1"-11-1/2NPTF-2 | 1-5/16"-12UN-2A | 34.93 | 58.40 | 23.10 | 21.40 | 23.90 | 23.80 | HT2404-16-16 | 140 |
| 1" | 1-1/4"-11-1/2NPTF-2 | 1-5/16"-12UN-2A | 42.86 | 61.00 | 23.10 | 21.40 | 24.60 | 31.75 | HT2404-16-20 | 80 |
| 1-1/4" | 1"-11-1/2NPTF-2 | 1-5/8"-12UN-2A | 42.86 | 61.50 | 24.30 | 27.50 | 23.90 | 23.80 | HT2404-20-16 | 140 |
| 1-1/4" | 1-1/4"-11-1/2NPTF-2 | 1-5/8"-12UN-2A | 42.86 | 62.20 | 24.30 | 27.40 | 24.60 | 31.80 | HT2404-20-20 | 80 |
| 1-1/2" | 1-1/2"-11-1/2NPTF-2 | 1-7/8"-12UN-2A | 50.80 | 68.10 | 27.50 | 33.30 | 25.40 | 38.00 | HT2404-24-24 | 70 |
| 2" | 2"-11-1/2NPTF-2 | 2-1/2"-12UN-2A | 66.68 | 79.00 | 33.90 | 45.20 | 26.20 | 49.00 | HT2404-32-32 | 70 |
Product
Assembly
HT2404 MJ-MP STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2404-04-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2404-04-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2404-04-02-SST |
| Stainless Steel-SS316 | SS316 | HT2404-04-02-SS |
| Stainless Steel-SS304 | SS304 | HT2404-04-02-S |
