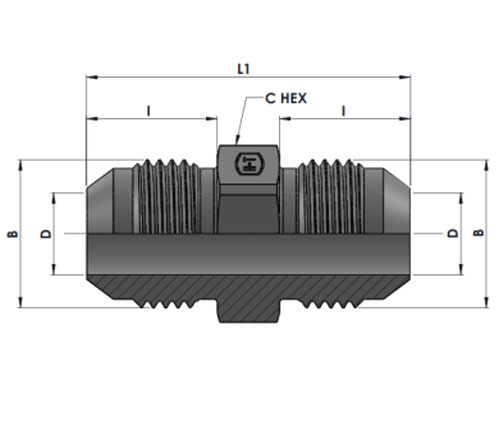

| Tube O.D. | A THREAD |
C Hex |
L1 Length |
I | D DRILL |
Part Number | Torque N-m | Working pressure in Bar |
| 1/8" | 5/16"-24UNF-2A | 11.11 | 29.70 | 11.40 | 1.60 | HT2403-02-02 | 8-9 | 345 |
| 3/16" | 3/8"-24UNF-2A | 11.11 | 31.20 | 12.20 | 3.20 | HT2403-03-03 | 11-12 | 345 |
| 1/4" | 7/16"-20UNF-2A | 12.70 | 34.80 | 14.00 | 4.40 | HT2403-04-04 | 15-16 | 345 |
| 5/16" | 1/2"-20UNF-2A | 14.29 | 34.80 | 14.00 | 6.00 | HT2403-05-05 | 19-21 | 345 |
| 3/8" | 9/16"-18UNF-2A | 15.88 | 35.80 | 14.10 | 7.50 | HT2403-06-06 | 24-28 | 345 |
| 1/2" | 3/4"-16UNF-2A | 20.64 | 41.10 | 16.70 | 9.90 | HT2403-08-08 | 49-53 | 310 |
| 5/8" | 7/8"-14UNF-2A | 23.81 | 47.50 | 19.30 | 12.30 | HT2403-10-10 | 77-85 | 240 |
| 3/4" | 1-1/16"-12UN-2A | 28.58 | 54.90 | 21.90 | 15.50 | HT2403-12-12 | 107-119 | 240 |
| 7/8" | 1-3/16"-12UN-2A | 31.75 | 56.10 | 22.60 | 18.30 | HT2403-14-14 | 127-140 | 210 |
| 1" | 1-5/16"-12UN-2A | 34.93 | 57.20 | 23.10 | 21.40 | HT2403-16-16 | 147-154 | 210 |
| 1-1/4" | 1-5/8"-12UN-2A | 42.86 | 61.70 | 24.30 | 27.40 | HT2403-20-20 | 172-181 | 170 |
| 1-1/2" | 1-7/8"-12UN-2A | 50.80 | 69.80 | 27.50 | 33.30 | HT2403-24-24 | 215-226 | 140 |
| 2" | 2-1/2"-12UN-2A | 66.68 | 86.40 | 33.90 | 45.20 | HT2403-32-32 | 332-350 | 105 |
Product
Assembly
HT2403 MJ-MJ STRAIGHT
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT2403-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT2403-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT2403-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT2403-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT2403-02-02-S |
