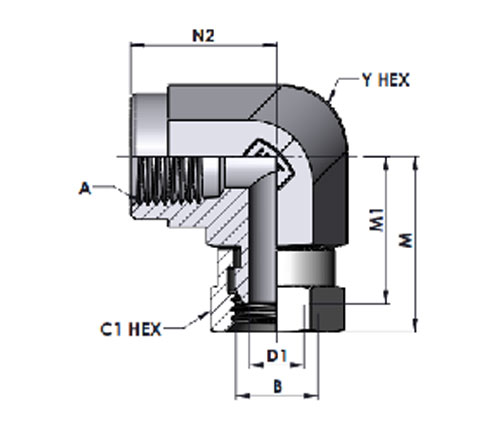

| A THREAD |
B THREAD |
Y Hex |
N2 Length | M1 Length |
M Length |
D1 DRILL | C1 Hex |
Part Number | Torque N-m |
Working pressure in Bar |
| 1/8"-27NPTF-2 | 1/8"-27NPSM | 14.27 | 12.70 | 15.75 | 19.30 | 3.80 | 14.27 | HT1502-02-02 | 12-13 | 345 |
| 1/4"-18NPTF-2 | 1/4"-18NPSM | 19.05 | 17.53 | 19.30 | 24.13 | 5.60 | 17.48 | HT1502-04-04 | 18-19 | 345 |
| 3/8"-18NPTF-2 | 3/8"-18NPSM | 22.23 | 19.05 | 19.56 | 24.89 | 8.60 | 22.23 | HT1502-06-06 | 22-24 | 275 |
| 1/2"-14NPTF-2 | 1/2"-14NPSM | 26.97 | 23.88 | 21.08 | 28.19 | 11.70 | 25.4 | HT1502-08-08 | 45-49 | 210 |
| 3/4"-14NPTF-2 | 3/4"-14NPSM | 33.32 | 25.40 | 24.38 | 33.27 | 16.10 | 31.75 | HT1502-12-12 | 65-72 | 170 |
| 1"-11-1/2NPTF-2 | 1"-11-1/2NPSM | 41.28 | 30.23 | 29.97 | 38.86 | 21.10 | 38.1 | HT1502-16-16 | 129-141 | 140 |
| 1-1/4"-11-1/2NPTF-2 | 1-1/4"-11-1/2NPSM | 47.63 | 36.58 | 31.24 | 41.91 | 27.60 | 47.63 | HT1502-20-20 | 160-176 | 80 |
| 1-1/2"-11-1/2NPTF-2 | 1-1/2"-11-1/2NPSM | 65.07 | 37.08 | 37.08 | 47.75 | 33.50 | 53.98 | HT1502-24-24 | 321-353 | 70 |
Product
Assembly
HT1502 MP-FPS 90°
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT1502-02-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT1502-02-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT1502-02-02-SST |
| Stainless Steel-SS316 | SS316 | HT1502-02-02-SS |
| Stainless Steel-SS304 | SS304 | HT1502-02-02-S |
