| Tube O.D. | O RD | D DIA | L Length | Part Number | Torque N-m | Working pressure in Bar |
| 1/8" | 6.78 | 3.30 | 8.60 | HT0319-02 | 8-9 | 345 |
| 3/16" | 8.36 | 4.90 | 8.60 | HT0319-03 | 11-12 | 345 |
| 1/4" | 9.73 | 6.48 | 10.40 | HT0319-04 | 15-16 | 310 |
| 5/16" | 11.30 | 8.08 | 11.20 | HT0319-05 | 19-21 | 275 |
| 3/8" | 12.75 | 9.65 | 12.70 | HT0319-06 | 24-28 | 275 |
| 1/2" | 17.32 | 12.83 | 14.20 | HT0319-08 | 49-53 | 275 |
| 5/8" | 20.24 | 16.03 | 16.80 | HT0319-10 | 77-85 | 210 |
| 3/4" | 24.69 | 19.20 | 17.30 | HT0319-12 | 107-119 | 210 |
| 7/8" | 27.86 | 22.38 | 19.30 | HT0319-14 | 127-140 | 170 |
| 1" | 31.04 | 25.55 | 19.80 | HT0319-16 | 147-154 | 170 |
| 1-1/4" | 38.96 | 32.00 | 23.10 | HT0319-20 | 172-181 | 140 |
| 1-1/2" | 45.31 | 38.35 | 28.40 | HT0319-24 | 215-226 | 105 |
| 2" | 61.19 | 51.16 | 30.20 | HT0319-32 | 332-350 | 80 |
Product
Assembly

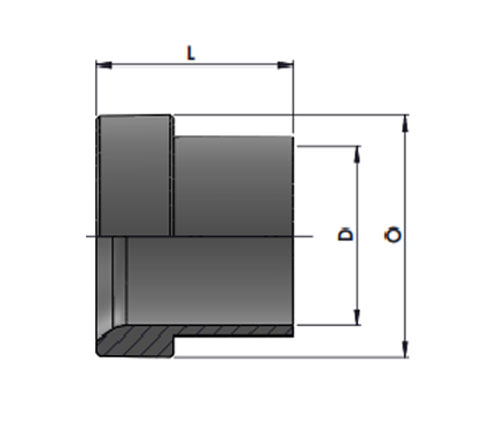

HT0319 JIC Tube Sleeve
| Material | Suffix surface and material | Example |
| Steel ,Zinc plated chrome (VI)-free | HT0319-02 | |
| Steel ,Zinc nickel plated | ZiNi | HT0319-02-ZiNi |
| Stainless Steel-SS316 Ti | SST | HT0319-02-SST |
| Stainless Steel-SS316 | SS316 | HT0319-02-SS |
| Stainless Steel-SS304 | SS304 | HT0319-02-S |
